42AAV48 Air Boosters and System

5 to 1 Boost Ratio, 0-8 scfm Flowrate

This shop air pressure booster uses shop air to boost the pressure of a separate air stream. The maximum discharge pressure is 5 times the shop air pressure. The table below shows the maximum flowrate capability at various discharge pressures versus several shop air supply pressures.

Construction

The major components of the air booster are anodized aluminum. The hardware components, check valves and piston rod are stainless steel. The drive cylinder and boost cylinder are seperated by a distance piece with a vent port which prevents cross contamination between the shop air and the boost air. The boost cylinder has a cooling jacket which uses exhaust air from the drive cylinder as the cooling medium. The booster is non-lubricated, and uses filled Teflon® piston seals and rod seals. It requires no electricity, cooling water, or air-line lubricator and is explosion proof.

Operation

Shop air is fed into the 4 inch diameter drive cylinder and the 2 inch diameter boost cylinder. The drive piston reciprocates automatically, driving the boost piston. The discharge flowrate and pressure can be controlled by throttling the shop air flowrate and/or regulating the shop air pressure. When there is no demand for high pressure air, the booster stalls when it reaches the maximum discharge pressure. When there is a need for high pressure air, the pressure in the discharge line drops which causes the booster to restart automatically. No shop air is consumed when the booster is stalled.

»Frequently Asked Questions - FAQs
»Shipping Information
»Air Booster Repair Kits

  Flowrate in SCFM
Air Supply Pressure (psi) Air Discharge Pressure (psi)
200 225 250 275 300 325 350 375 400 425 450 475
60 9.0 7.4 7.1 6.0
70   9.5 9.0 8.0 6.6 5.6
80     11.0 10.5 10.0 9.0 8.2 5.2
90             9.5 8.5 7.5 4.4
100                   9.0 6.8 4.2
5:1 Air Boosters

Model 42AAV48 • $3125

  • 5:1 Air Booster
  • 695 psi Maximum Pressure
  • 23"(L) x6"(W) x9.5"(H) • 31 pounds

3D Model is available - contact us

» Brochure
» Instructions

Model 42AAV48-AC • $3425

  • 5:1 Air Booster with Drive Controls
  • 695 psi Maximum Pressure
  • Drive Air Regulator
  • 23"(L) x10"(W) x11"(H) • 35 pounds

» Brochure
» Instructions


5:1 Air Booster System

5.5 Gallon Tank

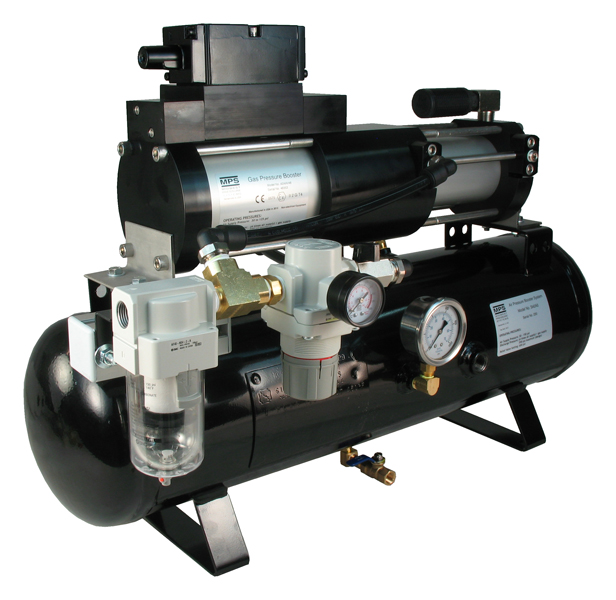

Model S42A5 • $4900

  • 5:1 Air Booster System
  • 590 psi Maximum Pressure
  • 5.5 Gallon Receiver Tank
  • Drive Air Regulator
  • 29"(L) x16"(W) x20"(H) • 81 pounds

» Brochure
