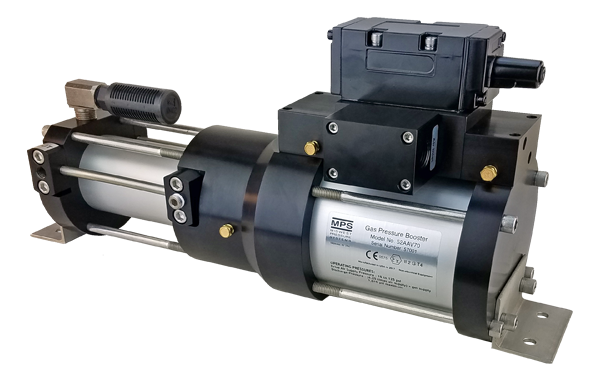

52AAV70 Gas Booster

7.2 to 1 Boost Ratio, 0-10 scfm Flowrate

This shop air pressure booster uses shop air to boost the pressure of an inert gas stream. The maximum discharge pressure is the sum of the gas inlet pressure plus 6.25 times the shop air pressure. The table below shows the maximum flowrate capability with 80 psi shop air and a typical range of inlet and discharge gas pressures.

Construction

The major components of the air booster are anodized aluminum. The hardware components, check valves and piston rod are stainless steel. The drive cylinder and boost cylinder are seperated by a distance piece with a vent port which prevents cross contamination between the shop air and the boost gas. The boost cylinder has a cooling jacket which uses exhaust air from the drive cylinder as the cooling medium. The booster is non-lubricated, and uses filled Teflon® piston seals and rod seals. It requires no electricity, cooling water, or air-line lubricator and is explosion proof.

Operation

Shop air is fed into the 5 inch diameter drive cylinder and the gas stream is fed into the 2 inch diameter boost cylinder. Both the gas flowrate and the gas discharge pressure can be controlled by throttling the drive air flowrate and/or regulating the shop air pressure. The air piston reciprocates automatically and drives the gas compressor piston. When there is no demand for high pressure gas, the booster stalls when it reaches the maximum discharge pressure. When there is a need for high pressure gas, the pressure in the discharge line drops which causes the booster to restart automatically. No shop air is consumed when the booster is stalled.

»Frequently Asked Questions - FAQs
»Shipping Information
»Gas Booster Repair Kits

  Maximum Flowrate in scfm Driven with 80 psi Shop Air Pressure
Gas Supply Pressure (psi) Gas Discharge Pressure (psi)
380 400 420 440 460 480 500 520 540 560 580
40 5.0 4.7 4.5 4.1 3.9 3.4 2.3
60   6.3 6.1 5.7 5.4 4.9 4.3 3.0
80     8.1 7.7 7.3 6.8 6.2 5.4 3.8 0.4
100       9.6 9.1 8.5 7.8 7.0 5.8 3.6 0.4
7.2:1 Gas Booster

Model 52AAV70 • $4320

  • 7.2:1 Gas Booster
  • 1,015 psi Maximum Pressure
  • 23"(L) x 8"(W) x 10"(H) • 31 pounds

3D Model is available - contact us
