43AAV34 Gas Boosters and Systems

2.8 to 1 Boost Ratio, 0-17 scfm Flowrate

This gas booster uses shop air to boost the pressure of an inert gas stream. The maximum discharge pressure is the sum of the gas inlet pressure and 1.78 times the shop air pressure. The table below shows the maximum flowrate capability with 80 psi shop air and a typical range of inlet and discharge gas pressures.

Construction

The major components of the gas booster are anodized aluminum. The hardware components, check valves and piston rod are stainless steel. The air cylinder and gas cylinder are seperated by a distance piece which prevents cross contamination between the shop air and the gas. The booster is non-lubricated, and uses filled Teflon® piston seals and rod seals. It requires no electricity, cooling water, or air-line lubricator and is explosion proof.

Operation

Shop air is fed into the 4 inch diameter drive cylinder and the gas stream is fed into the 3 inch diameter boost cylinder inlet port. Both the gas flowrate and the gas discharge pressure can be controlled by throttling the shop air flowrate and/or regulating the shop air pressure. The air piston reciprocates automatically and drives the gas compressor piston. When there is no demand for high pressure gas, the booster stalls when it reaches the maximum discharge pressure. When there is a need for high pressure gas, the pressure in the discharge line drops which causes the booster to restart automatically. No shop air is consumed when the booster is stalled.

»Frequently Asked Questions - FAQs
»Shipping Information
»Gas Booster Repair Kits

  Maximum Gas Flowrate in scfm Driven with 80 psi Shop Air Pressure
Gas Supply Pressure (psi) Gas Discharge Pressure (psi)
100 120 140 160 180 200 220
60 14.5 13.7 11.9 10.0 7.1
70 17.0 15.4 13.3 11.5 9.0 4.4
80   17.5 16.0 14.0 11.6 7.2
90     17.2 15.5 13.3 10.0 5.0
100       17.0 15.2 12.5 8.2
2.8:1 Gas Boosters

Model 43AAV34 • $3125

  • 2.8:1 Gas Booster
  • 490 psi Maximum Pressure
  • 23"(L) x 6.5"(W) x 9.5"(H) • 43 pounds

3D Model is available - contact us

» Brochure
» Instructions

Model 43AAV34-ACG • $3375

  • 2.8:1 Gas Booster with Drive Controls
  • 490 psi Maximum Pressure
  • Drive Air Regulator
  • 23"(L) x11"(W) x11"(H) • 48 pounds

3D Model is available - contact us

» Brochure
» Instructions


2.8:1 Gas Booster Systems

3.5 Gallon Tank

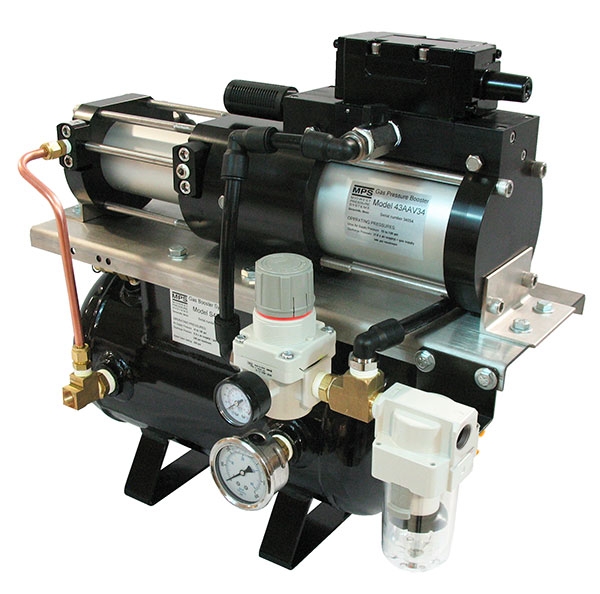

Model S43N3 Gas System • $4450

  • 2.8:1 Gas Booster System
  • 340 psi Maximum Pressure
  • 3.5 Gallon Receiver Tank
  • Drive Air Regulator
  • 23"(L) x14"(W) x23"(H) • 70 pounds

3D Model is available - contact us

» Brochure
» Instructions



12 Gallon Tank

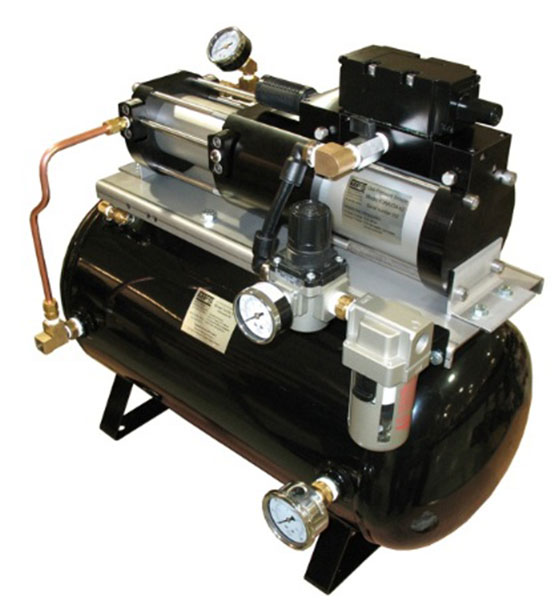

Model S43N12 Gas System • $4700

  • 2.8:1 Gas Booster System
  • 230 psi Maximum Pressure
  • 12 Gallon Receiver Tank
  • Drive Air Regulator
  • 27.5"(L) x14.8"(W) x24.7"(H) • 91 pounds

3D Model is available - contact us

» Brochure
» Instructions
