RL400S Air Booster and Systems

4 to 1 Boost Ratio, 0-1.3 scfm flowrate

Our line of compact, air-driven, air pressure booster systems require no cooling water, lubrication or electricity. These boosters can deliver flowrates from zero to the values shown in the table below and provide pressure boost ratios from zero to 4:1. The integral pressure regulator is used to set the maximum discharge pressure desired. The booster will maintain this pressure regardless of fluctuations in supply pressure. When there is no demand for high pressure air, the booster stalls and consumes no energy. It restarts automatically when there is demand.

»Frequently Asked Questions - FAQs
»Shipping Information
»Air Booster Repair Kits


  Flowrate in SCFM
Supply Pressure (psi) Air Discharge Pressure (psi)
120 140 160 180 200 220 240 260 280
60 1.37 1.19 1.00 0.80 0.56 0.40 0
70   1.55 1.38 1.20 1.03 0.87 0.69 0.48 0
80   1.92 1.73 1.54 1.35 1.16 0.97 0.78 0.57
90     2.18 1.98 1.77 1.55 1.33 1.10 0.88
100       2.46 2.21 1.97 1.7 1.42 1.13
4:1 Air Boosters

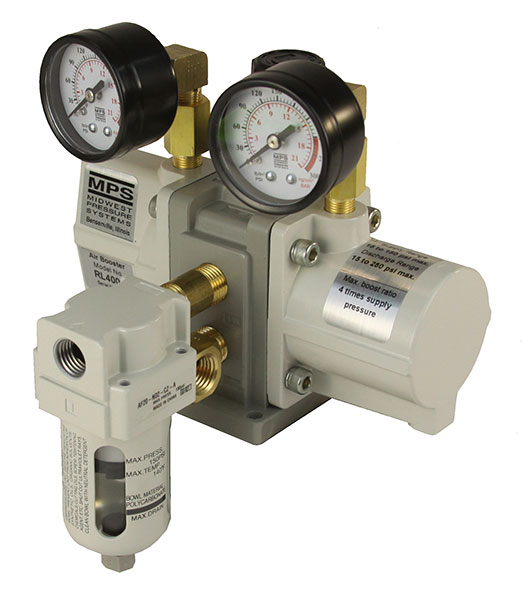

RL400S

Model RL400S • $800

  • 4:1 Air Booster
  • 280 psi Maximum Pressure
  • 6"(L) x 6"(W) x 6"(H) • 6 pounds

3D Model is available - contact us

» Brochure
» Instructions


4:1 Air Booster Systems

1 Gallon Tank

Model RL401SH • $1200

  • 4:1 Air Booster System
  • 280 psi Maximum Pressure
  • 1 Gallon Horizontal Mount Receiver Tank
  • 8.6"(L) x 16.8"(W) x 8.4"(H) • 22 pounds

3D Model is available - contact us

Model RL401SV • $1200

  • 4:1 Air Booster System
  • 280 psi Maximum Pressure
  • 1 Gallon Vertical Mount Receiver Tank
  • 8.9"(L) x 6.9"(W) x 15.9"(H) • 22 pounds

3D Model is available - contact us

Model RL401SW • $1200

  • 4:1 Air Booster System
  • 280 psi Maximum Pressure
  • 1 Gallon Wall Mount Receiver Tank
  • 9"(L) x 6.9"(W) x 16.7"(H) • 22 pounds

3D Model is available - contact us



3.5 Gallon Tank

RL403S

Model RL403S • $1500

  • 4:1 Air Booster System
  • 280 psi Maximum Pressure
  • 3.5 Gallon Receiver Tank
  • 17"(L) x 11"(W) x 17"(H) • 31 pounds

3D Model is available - contact us

» Brochure
» Instructions



12 Gallon Tank

RL412S

Model RL412S • $1850

  • 4:1 Air Booster System
  • 230 psi Maximum Pressure
  • 12 Gallon Receiver Tank
  • 28"(L) x 14"(W) x 22"(H) • 51 pounds

3D Model is available - contact us

» Brochure
» Instructions
